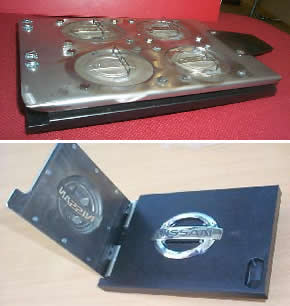

Metal/plastic jig for automotive badge spraying.

The masking jig is arranged with a hinge for manual load and un-load operation. The lettering detail is achieved by Nickel deposition using actual components. Non-abrasive materials are used to avoid damaging the parts. Nests can be arranged to suit multicavity effective spraying as illustrated.

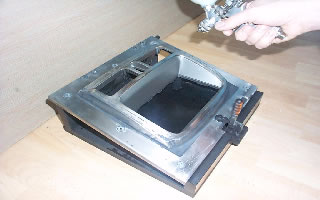

Metal/plastic paint jig for automotive dashboard panel.

The component is to be decoratively coated. The cosmetic quality standards are obviously demanding. The masking detail is achieved by Nickel deposition using the actual components. The electroform is them mounted onto a metal frame to provide rigidity. Tools are machined and mounted with high precision. Non-abrasive thermoplastic materials are also used to avoid damaging the parts.
